8. Accessories

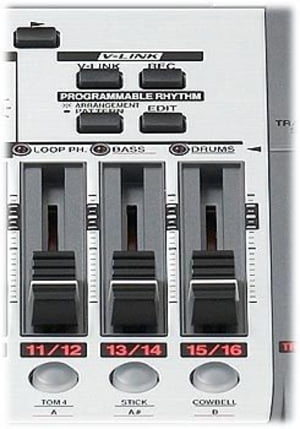

Drum computers and more:

An integrated drum computer turns a digital recorder into a self-sufficient work station. Since drum computers generally work independently from the audio recording section they don't not take up any of the precious audio tracks. And with 8-track recording systems like the Boss BR-900 CD, the Boss BR-600, or the Zoom MRS-8SD the integrated drum computer is also freely programmable. 4-track mini studios like the Zoom PS04 or Korg's D4 forgo this function in favor of a wide arrange of the most common grooves and styles. The patterns are carefully chosen and since you can access the different variants of the individual grooves, it is possible to tinker with the backing track for already complete songs.

CD Burners

Some multi-track compact studios are equipped with an integrated CD/RW burner. So that you can burn completed projects, without the use of a computer, onto a CD. The second advantage of a burner: Completed projects with tracks and effects can be easily archived as well as loaded - freeing up the hard drive and allowing sound samples from diverse libraries to be imported directly from a CD.

Digital Editing

Just as you are able to manipulate text in a word processor, you can also cut, copy, paste and insert audio tracks on multitrack recorders.

Location Points

These enable you to visually mark specific points of a song such as verses and choruses, so that you can quickly and conveniently navigate around without having to continually search through– highly convenient when used in conjunction with copy and paste functions.

Track Bouncing

If you’re running out of tracks, you can mix several of them down to one or two in order to free them up. This is a handy trick, but care should be taken, as unless you’re using virtual tracks, you cannot later remix.

Punch In/Out

This feature is often used to replace mistakes or re-record parts of a track that could have been performed better. It lets you enable and disable recording while playing back the song to record the part on the fly. Also sometimes referred to as ‘dropping’ in/out.

Auto-Punch

Short for ‘Automatic Punch In/Out’, it makes punching in and out both easier and more precise. Typically available on higher-end multitrackers, the feature allows users to set ‘in’ and ‘out’ recording points, which will cause the recorder to automatically drop in and out of record.

Mute and Solo

Pressing a track’s mute button will simply remove its output from the mix until the button is pushed again. Soloing a track produces the opposite result - all channels are muted except the one being soloed.

Sample Rate

The sample rate is a measure of how many times per second the source material is being ‘sampled’. Sample rate affects the frequency response of the final recording - the highest frequency that can be accurately represented is just under half the sample rate. Generally speaking, the higher the sample rate, the better the sound quality, but the most sensible sample rate to use will depend on your system - the higher the rate, the more storage required, and sometimes the lower the track count. The law of diminishing returns definitely applies here – 96kHz does not sound twice as good as 48kHz!

Mastering

The process whereby recorded material is taken from the multitracker and prepared for duplication in the format of the final release. This can include any or all of the following - equalisation, compression, limiting, normalisation, stereo widening, fades, and simply arranging the songs in the desired order.

Non-Linear Editing

The editing of audio on a system that has the ability to randomly access data, with the upshot that the user can define a region and move it forward or backward in relation to other regions.

What is 'Digital Recording'?

Audio information saved as digital information. Can be stored on the following mediums: Magnetic band (video cassettes), hard drive, or removable storage such as discs and SD cards.

What is encoding?

Refers to reducing the amount of data from audio and video recordings by using a variety of data compression methods. Among the best known variants is the MPEG 3 (MP3) format.

What is a 'marker'?

An electronic marking of a specific part of a song, allowing you to narrow down certain areas of an audio track to be replaced or copied. Also serves to mark the entry and exit points in the punch in / out process.

What are patches?

Completed effect presets.

What is 'speaker simulation'?

Digital adjustment of the sound characteristics of guitar or bass amps.

What is the undo function?

Many digital recorders work with a protective recording system. When dubbing tracks, the "deleted" data is stored until it is finally sent to data nirvana when the song data is optimized. The original tracks are recoverable until then by using the 'undo' function.

What are virtual tracks?

Each of the main tracks on a digital recorder is divided into up to 10 sub-tracks, depending on the device. The 'v-trax' offer the possibility of recording different takes (versions) of the same song part. You only need to choose one of the virtual tracks when it comes time to mix the recording.

What is 'amp-modeling'?

Digital reproduction of the sound characteristics of guitar or bass amps.
