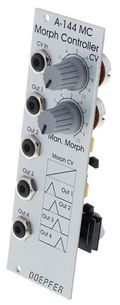

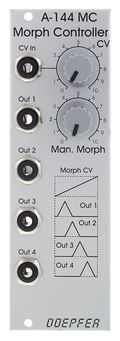

Doepfer A-144

66 € 282,82 PLN Zawiera podatek VAT, nie zawiera kosztów wysyłki
Dostępny w magazynie


Morphing Controller

Module A-144 is a control voltage module, which is primarily used in combination with the voltage-controlled mixer (A-135). It generates four mutually offset triangular output control voltages from a linearly increasing input control voltage. If these 4 outputs are connected to the 4 control voltage inputs of the A-135, the A-144's signal is cross-faded with the linearly increasing control voltage of the A-135 (a "morphing" controller). The manual override can be adjusted manually (manual morphing) with a rotary control and can be modulated with an attenuator using an external control voltage (eg LFO, ADSR, Random, MIDI-to-CV, Theremin, Light-

  • Inputs: CV In
  • Outputs: CV Out 1, 2, 3, 4
  • Controls: Manual morphing, CV attenuator
  • (Merging) between the 4 waveform outputs of the VCOs (sawtooth / rectangle / delta / sine) or the 4 filter outputs of the A-121 (low-pass / band-pass / High pass filter) or the 4 filter outputs of the A-105 (6/12/18 / 24dB) to obtain a filter with voltage controlled edge slope
