Marienberg Devices VC Envelope Generator A

593 € 2 637,94 PLN zawiera podatek VAT · Darmowa wysyłka
Na tel./ email

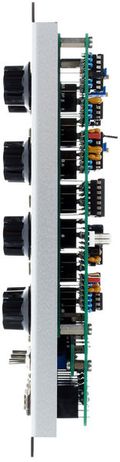

Voltage-Controlled Envelope Generator

Complex ADSR envelope generator with advanced functions. Each phase can be modulated with a control voltage and upon reaching each phase, a gate signal is generated and provided at its own output. This can be used to create interesting switching states or to connect several envelopes. Another special function is "Time Compress" - a control voltage input over which all phases can be shortened globally. This allows the envelope curve to be synchronised with the speed of the sequencer.

  • Developed and handmade in Germany
  • Analogue extended envelope generator
  • Gate output for each phase
  • "Time Compress" function
  • Different trigger modes selectable
  • 1.5 ms to 10s for attack, decay and release phase
  • Voltage range per input 0 to 10 V
  • Voltage range per gate output 0 to 5 V
  • Power consumption: 80 mA
  • Connectors: 6.3 mm mono jack
  • Dimensions: 222.25 x 101.6 x 40 mm
  • Weight: 491 g
  • Can only be operated with Marienberg Devices power supply units!
