Sennheiser ew 100 G4-835-S A1-Band

UHF Wireless System

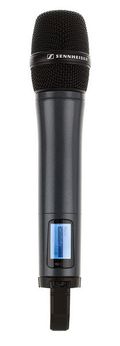

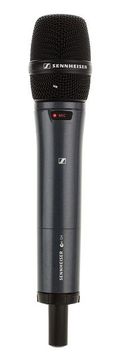

• With SKM 100 G4-S hand transmitter with mute switch and E835 changeable capsule
• Frequency range A1 band 470 - 516 MHz
• Includes rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries

Features E835 changeable capsule:

• Dynamic
• Polar pattern: Cardioid

Features EM 100 G4 9.5" receiver:

• 42 MHz bandwidth
• 20 Frequency banks with up to 12 presets for each
• Up to 20 compatible channels
• Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
• Frequency response: 25 - 18,000 Hz
• Frequency transmission over infra red interface
• Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
• Pilot tone
• Autotune to find free frequencies
• Integrated EQ
• Audio gain over 60 dB range
• Soundcheck mode
• 4-Level battery indicator on transmitter and receiver
• HDX compander
• LCD with AF level and channel display
• 30 mW Transmitter power
• 2 BNC Antenna connector
• XLR-Male balanced and jack unbalanced
• Power supply 10.5 - 16 V DC
