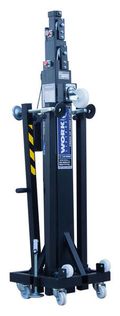

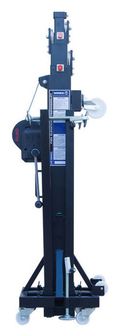

Work LW 290 D Truss Lift 290kg 6,6m

€ 1.899 IVA incluído · Portes gratuitos
Em stock

Detalhes do produto

Telescopic Lifter

  • Certified according to DGUV V17 / 18 (BGV C1) and already prepared for the new DIN 56950-3
  • WIRE DRIVE for a perfect and material-saving cable winding, as required by DIN 56950-3
  • With the optional DYNSYS hand crank (not included), the LW 290 D also meets the requirements of DIN 56950-3
  • DYNSYS prevents overloading of a lift by the user
  • Previously, the exact determination of the dynamic load was not possible, except by concrete calculation and the corresponding calculated variable reserves
  • Depending on the lift used, DYNSYS is set exactly to the maximum load and, similar to a slipping clutch, blocks the lifting process in case of overload
  • DYNSYS guarantees a maximum load of 15 kg at the hand crank at all times
  • Surface coating: Black lacquer finish
  • Matching truss receiver Work AW-150: Article no. #170156# (not included)

Technical Data:

  • Sections: 5
  • Telescopic elements: 4
  • Material: Steel
  • Load max.: 290 kg
  • Load min.: 25 kg
  • Height max.: 6.6 m
  • Height min.: 1.8 m
  • Tube attachment diameter: 50 mm
  • Stand area: 1.8 x 1.8 m
  • Transport Height: 1.8 m
  • Transport area: 0.5 x 0.5 m
  • Transport weight: 184 kg
  • Transport wheels: 4 + 3
