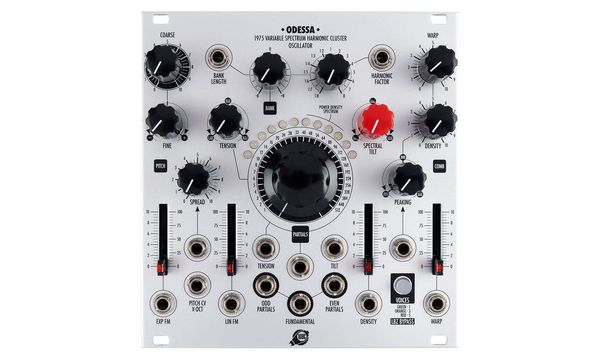

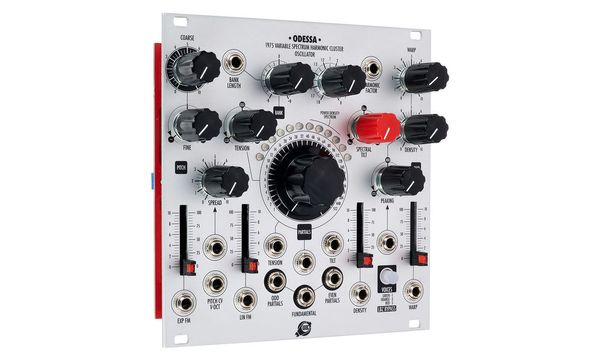

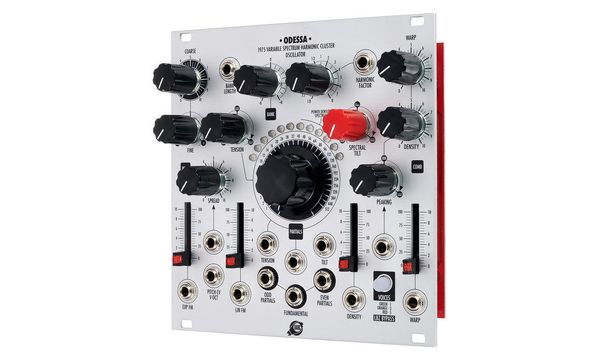

XAOC Devices Odessa

Eurorack module

• Variable Spectrum harmonic cluster oscillator
• Additive sound synthesis with up to 2560 partials (harmonic partials)
• Simple operation with direct access to all parameters
• Controls for coarse and fine tuning
• Linear Through-Zero FM input with attenuator
• Exponential FM input with attenuator
• Spectrum Analyzer with 12 LEDs to visualize the distribution of partials
• Number, distribution and level of partials can be controlled via 9 parameters and CV inputs
• Unisono detuning of up to 5 voices possible
• 5-Part polyphonic playable via Hel-Expander (Article Nr. #478237#, not included)
• Separate outputs for fundamental, straight and odd harmonics
• Current consumption: 110mA (+12V) / 80mA (-12V)
• Width: 24 TE
• Depth: 32 mm
