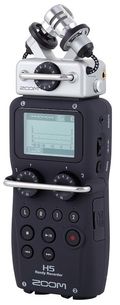

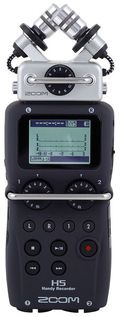

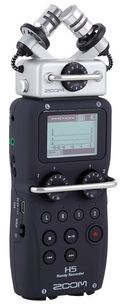

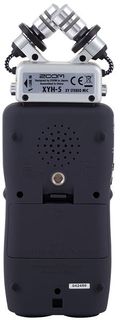

Zoom H5

Portable Audio Recorder

• Uses a system of interchangeable microphone capsules
• Includes detachable X/Y capsule (XYH-5)
• Compatible with all Zoom input capsules
• Records up to 24-bit / 96 kHz
• Recording format: WAV (BWF compatible) and MP3
• 4-track simultaneous recording
• Large backlit LCD display
• Records directly to SD and SDHC cards up to 32 GB
• 2 mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad
• Gain control knob on each input, with protective 'roll-bar' that prevents accidental movement during handling
• Plug-in power (2.5 V)
• Built-in effects, including high-pass filter, compressor and limiter
• Chromatic tuner and metronome
• Auto-record, pre-record and backup-record functions
• M/S decoding
• Multitrack to stereo internal mixdown
• Normalize, divide, and trim editing
• A/B loop playback
• Integrated loudspeaker
• Variable playback speed and pitch (without tempo change)
• Multichannel and stereo USB audio interface for PC, Mac and iPad (requires optional camera connection kit)
• 1/4" attachment screw-hole on the back side
• Powered by 2 Conventional AA alkaline batteries or NiMH rechargeable battery packs
• Operating time (with alkaline batteries): approx. 15 h
• Dimensions of H5: 67 x 135 x 42 mm
• Dimensions of XYH-5 capsule: 66 x 82 x 41 mm
• Weight H5: 176 g
• Weight XYH-5: 94 g

Includes:

• XYH-5 X/Y microphone capsules
• 2x AA (LR6) batteries
• USB Cable
• Foam windscreen
• Case
• Steinberg Cubase LE software (download)
• Steinberg WaveLab LE software (download)
