Neumann Monitor Alignment Kit 3

2 390 € sis. ALV · Ei lähetyskuluja
Saatavilla 3-5 viikon sisällä

Tuotteen tiedot

Bundle offer comprising

Neumann KH 750 DSP

  • Active Studio Subwoofer with DSP
  • Equipped with: 10" Ultra long excursion woofer
  • Power: 256 W
  • Maximum SPL: 105.0 dB
  • Frequency response: 18 - 750 Hz (+3 dB)
  • 4 Different LFE modes selectable
  • Crossover frequency: 80 Hz
  • Acoustic control with 8 fully parametric filters via the Neumann.Control app
  • FIR phase correction for the connected Neumann analogue monitors via the Neumann.Control app or optional MA 1
  • Switchable stand-by mode
  • Analogue inputs / outputs in XLR
  • Digital inputs / outputs in BNC (75 Ohm, AES3)
  • Optional control and configuration via the Neumann.Control iPad app
  • Automatic calibration including the connected Neumann monitors via optional MA 1 software (MAC/PC)
  • Dimensions: 383 x 330 x 383 mm
  • Weight: 19.5 kg

2x Neumann KH 80 DSP

  • Studio Monitor with DSP
  • 24-Bit 48 kHz signal processing
  • Equipped with: 4" woofer 1" tweeter
  • Frequency response (+/- 3 dB): 57 Hz - 21 kHz
  • Maximum output level: 108.8 dB SPL
  • Power: 90 W woofer and 50 W tweeter
  • Control panel for standby and acoustical control
  • Electronic peak /thermo limiter protection circuit separately for woofer and tweeter
  • Input / output level control
  • Linear phase DSP crossover 8th order
  • External 4-position acoustical controls for low-mid or internal automatic or manual room correction (Precision Alignment) with max. 8 IIR filters plus low / high shelf global filter balance
  • 70-ms delay function for time and lipsync settings
  • Self-generated noise <20 dB (A) at 10 cm
  • Input: balanced XLR, magnetically shielded
  • Network connection
  • 2 x M6 threaded inserts for stands/mounts
  • Dimensions (H x W x D): 233 x 154 x 194 mm
  • Weight: 3.5 kg

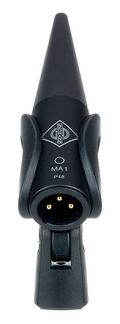

Neumann MA 1

  • Automatic Monitor Alignment
  • Calibration system for stereo setups with Neumann KH 80 DSP and all analog (non-DSP-based) Neumann monitors in connection with the KH 750 DSP subwoofer
  • Calibration algorithms developed jointly with Fraunhofer IIS
  • Individually calibrated measurement microphone
  • Space-adaptive target curve
  • Phase and amplitude optimization for analog Neumann monitors
  • Frequency range: 20 - 20000 Hz
  • Directional characteristic: Omnidirectional
  • For Mac and PC
  • Dimensions (length x diameter): 117 x 23 mm
  • Weight: 37 g
  • System requirements: Windows 10 (64 bit) or macOS 10.13 / 10.14 / 10.15, audio interface with balanced, analog input with 48 V phantom power and 2 balanced, analog outputs or digital AES3 output (only KH 750 DSP), ASIO driver (for Windows ), Network switch

Setti sisältää
